Boat Overview

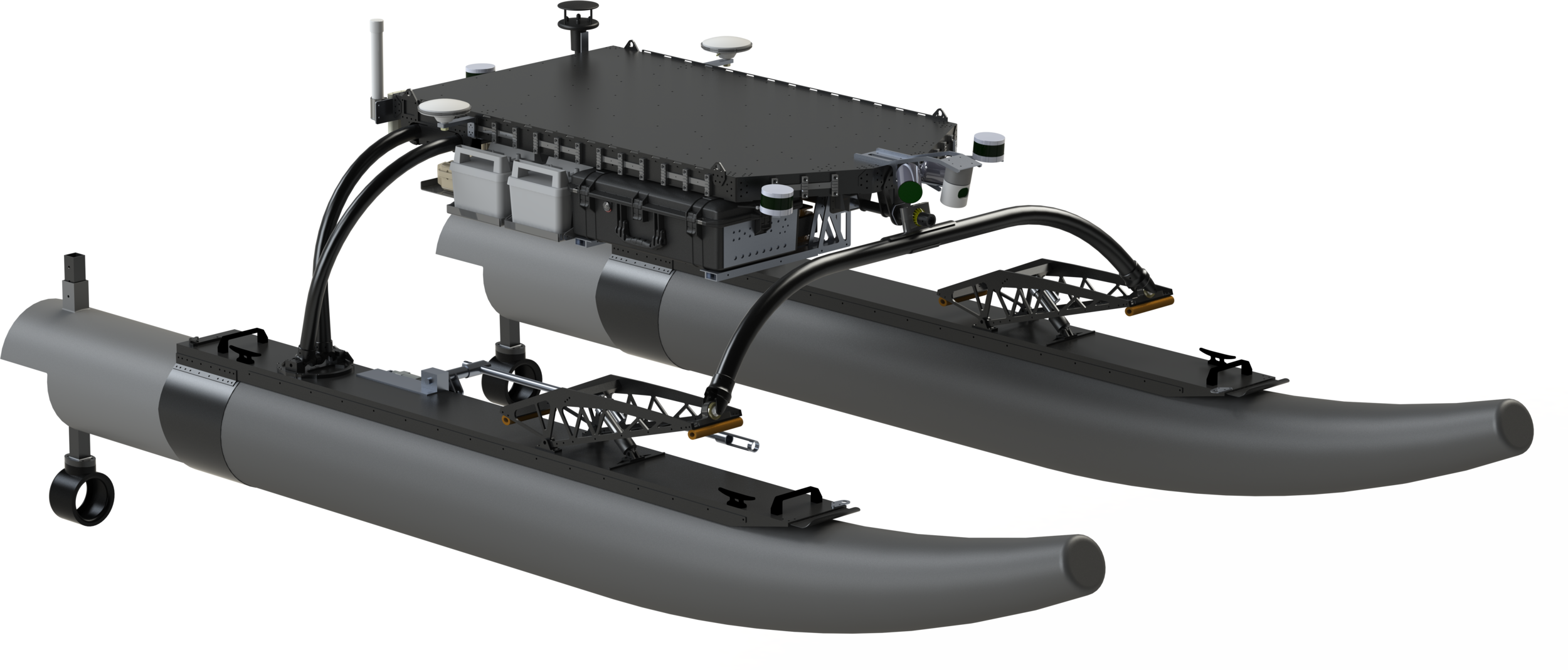

The Minion Research Platform
Motor pod
The Minion ASV utitilizes custom-design and -fabricated fiberglass motor-pods. Below them sit our propulsion system: RDPs, or Rim Driven Propellers. These are a special type of marine electric motor in which a brushless motor is built around the propeller. This eliminates the shaft, mitigates the risk of snagging and provides an increased level of efficiency. The RDPs on Minion are driven by MARC, a custom built motor controller designed by the Minion team.
MODULAR RAIL
Minion ASV’s payload tray has been upgraded to realize the goal of a more useable autonomous research platform. To do this a modular rail system has been installed around its perimeter. This rail uses the ubiquitous picatinny mounting system to ensure easy installation and secure attachment, allowing for the tool-less installation of hardware with no modification to Minion.
HYDROPHONE
Minion has a hydrophone array to detect acoustic underwater pingers. The hydrophone array consists of a diamond shaped, planar array of four Teledyne Reson hydrophones. Signals are amplified and sampled before being processed in software. To deploy the array, a linear actuator is used to rotate the array and pole mount 90 degrees downward into the water. The mounting pole serves to lower the array deep enough to limit the impact of surface reflections.
MAST
The MAST (Minion Autonomous Systems Tray) furthers the concept of a modular and upgradable Minion ASV. This system consists of support and mounting for Minions batteries, ESC’s, control board, expansion bay, and computer hardware. These systems are readily accessible, upgradable, and removable using only a single tool. MAST lowers Minions overall CG, while allowing ample storage for equipment atop the deck. Equipment can be mounted to the deck using the pre-drilled, threaded bolt pattern.
Perception SUITE
The hardware of the Minion perception suite is responsible for detecting and characterizing waterborne objects. Primary sensing is provided by four Lidar sensors providing up to 1.6 million data points per second. The location and orientation of these sensors optimizes return density on objects to the port, stern and bow of Minion. Lidar data is fused with imagery from two 100-degree field-of-view, 5MP cameras for improved object detection and characterization.
"Lackey" Subvehicle

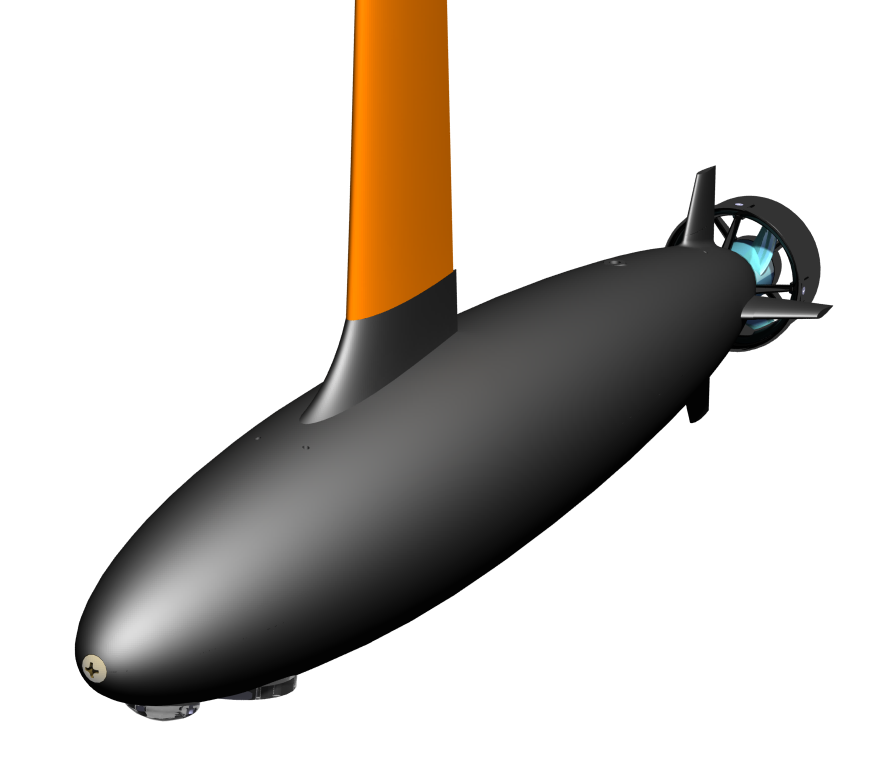

The RobotX subvehicle, Lackey, is based on the SWASH (Small Waterplane Area Single Hull) concept, and is able to operate with minimal interaction with the water surface, resulting in a more stable sensing platform. Measuring 29 inches long by 4.8 inches in diameter the hydrodynamically tailored hull offers both minimal drag, and high maneuverability without sacrificing internal usable volume. The mast adds stability and allows for sensors to have a clear view of the sky for both GPS based sensing and normal RF based communications. Lackey features a 3D-printed hull, an onboard downward facing color camera and high intensity illuminator, as well as a fully featured IMU/Magnetometer combination, single board computer and Wi-Fi based data links.
"BODYGUARD" Racquetball Turret

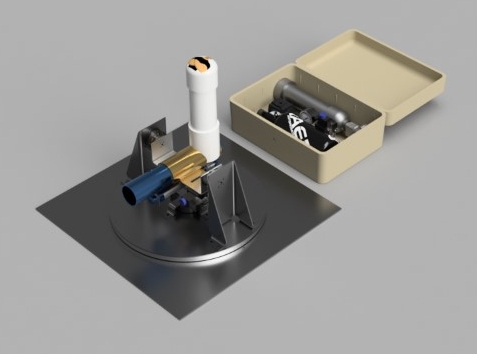

Bodyguard is a pneumatic racquetball delivery system designed to complete the detect and deliver task of the maritime robotx competition. Bodyguard features an actively stabilized gimbal system which keeps the launcher pointed at its intended target in even the roughest of seas. Bodyguard incorporates a pneumatic reloading mechanism which allows rapid reloading and subsequent deployment of racquetballs at the target allowing more time for later tasks.
